Design, Supply, and Commissioning of 02 Advanced Modular Operation Theatres delivered in a record-breaking 28 days at Max Hospital, Saket.
Max Hospital, Saket
New Delhi, India
Brownfield Building
Orthopaedic Specialization
Our multidisciplinary approach ensured a turnkey solution covering structural, mechanical, and medical systems.
High-quality Steel Panels with 100% modular antibacterial powder coating finish.

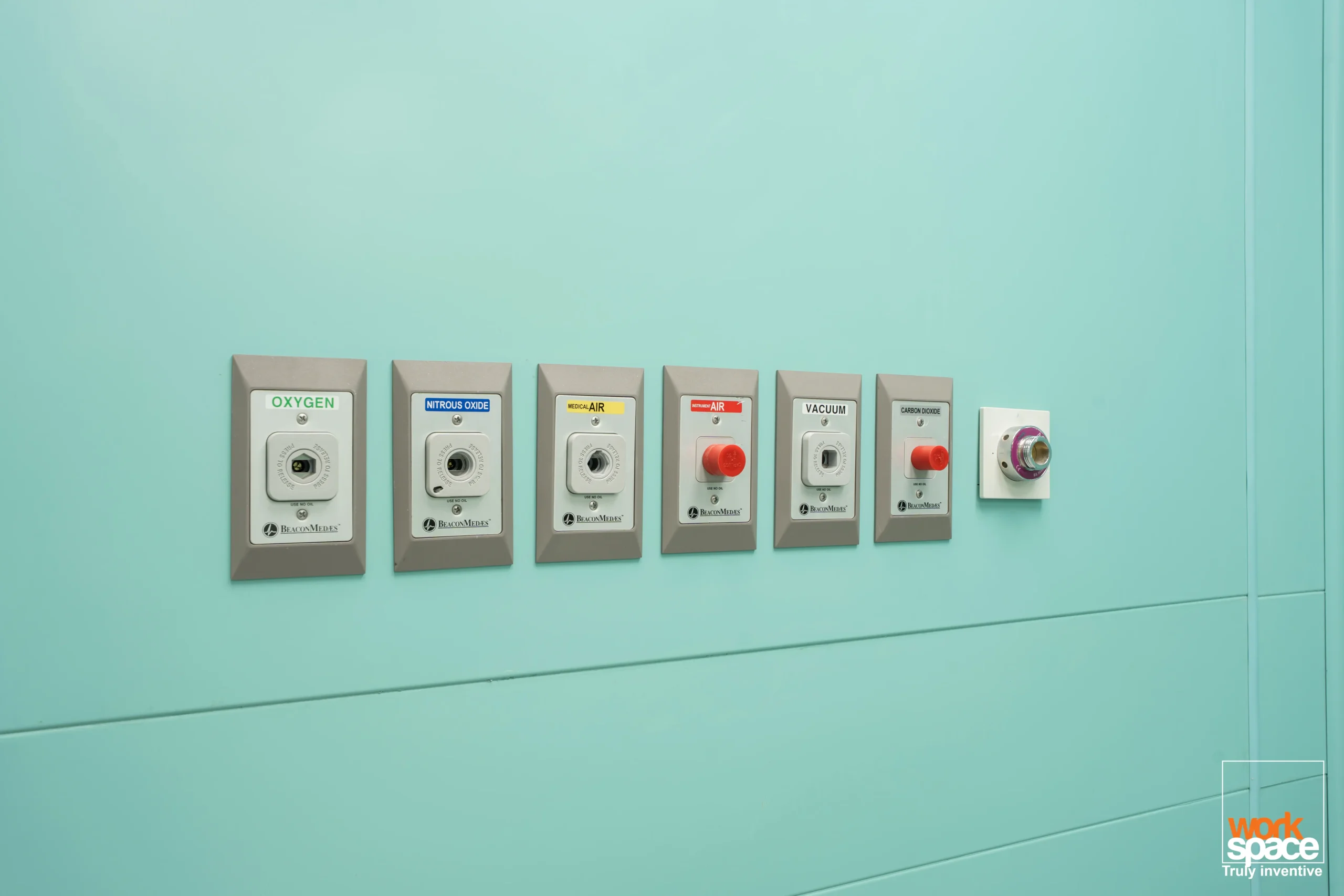

Medical Gas Pipeline System compliant with HTM 02-01 / NFPA 99 for O2, N2O, Air, and Vacuum.
Dedicated AHUs with HEPA H14 filters ensuring 99.97% air purity at 0.3 microns.
Power Supply Isolation Panels (IPS) and UPS connectivity for uninterrupted surgical power.
Automatic sliding hermetically sealed OT doors with 99% sealing efficiency.
BMS monitoring for temp/humidity and 55-inch PACS medical-grade monitors.
Every component was selected to meet the rigorous demands of high-precision orthopaedic surgeries, prioritizing infection control and surgeon ergonomics.
Executing two high-complexity OTs within a fully functional hospital environment is usually a 90-day task. We did it in 28, without disturbing a single patient.
Achieving commissioning within just 4 weeks while maintaining stringent medical standards and certifications.
Brownfield site execution where ongoing medical services for admitted patients could not be interrupted.
Shift-based workforce rotation allowing heavy construction while patients slept.
Off-site manufacturing of modular components synchronized with site prep.
Concurrent testing of HVAC and MGPS systems to avoid post-completion delays.
28 days from site handover to full operational readiness.
Civil works, night-shift demolition, and base structural support installation.
Steel panel erection, HVAC ducting, and MGPS piping backbone.
Hermetic doors, conductive flooring, and medical equipment mounting.
Particle count, HVAC validation, BMS calibration, and staff training.
Operational Readiness
Hospital Disruptions
Grade Compliant
The project delivered 2 state-of-the-art modular OTs optimized for Knee Replacement Surgeries, enhancing infection control, surgeon ergonomics, and patient safety protocols.
WMSPL is a trusted manufacturer and turnkey provider of Modular Operation Theatres, Clean Room Solutions, and Healthcare Infrastructure Systems for hospitals and critical care facilities in India and overseas.
